ANSI-100-3-ELITE-DIN8188-5M-IWIS
IWIS

Roller chain triplex

ANSI-100-3-ELITE-DIN8188-5M-IWIS

Part number : ANSI-100-3-ELITE-DIN8188-5M-IWIS

IWIS
Trustpilot

Trustpilot

Description

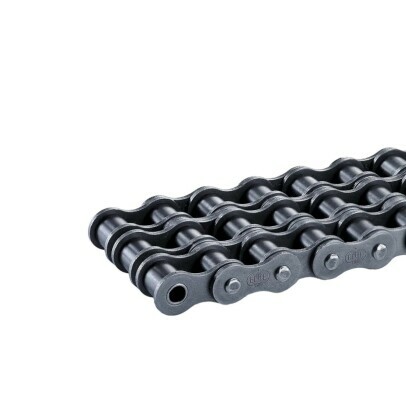

The Roller Chain Triplex of type 100 of the brand IWIS known under the reference ANSI-100-3-ELITE-DIN8188-5M-IWIS. It has a pitch 31 mm and is to the iso606ansi norm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Roller Chain Triplex of type 100 of the brand IWIS known under the reference ANSI-100-3-ELITE-DIN8188-5M-IWIS. It has a pitch 31 mm and is to the iso606ansi norm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

TECHNICAL DATA

  • TYPE
    100
  • WEIGHT
    58  G
  • LUBRICATION
    elidurplus
  • PACKAGING
    5m
  • CHAIN STANDARDS
    iso606ansi
  • ISO STANDARD BREAKING LOAD
    261  KN
  • WEIGHT PER METER
    11  KG
  • JOINT SURFACE
    7  CM2
  • PITCH
    31  MM
  • WIDTH BETWEEN INNER PLATES
    18  MM
  • ROLLER DIAMETER
    19  MM
  • AXIS DIAMETER
    9  MM
  • OUTSIDE WIDTH INSIDE LINK
    27  MM
  • PLATE HEIGHT
    30  MM
  • ADDITIONAL LENGTH
    6  MM
  • NUMBER OF ROWS
    3
  • BRAND
    IWIS
  • N° EAN13
    3616061000063

Description

The Roller Chain Triplex of type 100 of the brand IWIS known under the reference ANSI-100-3-ELITE-DIN8188-5M-IWIS. It has a pitch 31 mm and is to the iso606ansi norm.
