100-2-ELITE-5M-IWIS
IWIS

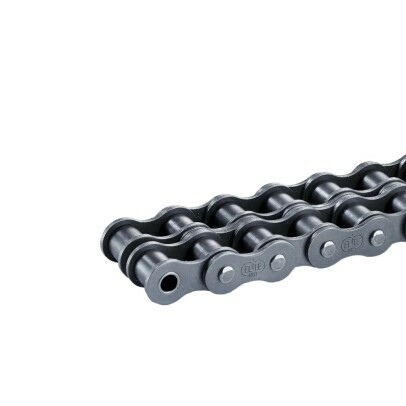

Roller chain duplex 100-2-ELITE-5M-IWIS

Part number : 100-2-ELITE-5M-IWIS

IWIS
Trustpilot

Trustpilot

Description

The Roller Chain Duplex of type 100 of the brand IWIS known under the reference 100-2-ELITE-5M-IWIS. It has a pitch 31.75 mm and is to the iso606ansi norm.

See data sheet
Your price: €782.21 INCL. VAT

  8 to 10 days

logo_delivery Delivered tomorrow. order within

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Roller Chain Duplex of type 100 of the brand IWIS known under the reference 100-2-ELITE-5M-IWIS. It has a pitch 31.75 mm and is to the iso606ansi norm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot
TECHNICAL DATA
  • BRAND
    IWIS
  • N° EAN13
    3616060989062
  • MATERIAL
    STEEL
  • TYPE
    100
  • WEIGHT
    39000  G
  • LUBRICATION
    elidurplus
  • SERIES
    G1
  • CHAIN STANDARDS
    iso606ansi
  • ISO STANDARD BREAKING LOAD
    174  KN
  • WEIGHT PER METER
    7.8  KG
  • JOINT SURFACE
    5.16  CM2
  • PITCH
    31.75  MM
  • WIDTH BETWEEN INNER PLATES
    18.9  MM
  • ROLLER DIAMETER
    19.05  MM
  • AXIS DIAMETER
    9.54  MM
  • SHAFT LENGTH
    77  MM
  • OUTSIDE WIDTH INSIDE LINK
    27.45  MM
  • PLATE HEIGHT
    30.17  MM
  • TRANSVERSE PITCH
    35.76  MM
  • ADDITIONAL LENGTH
    6.1  MM
  • NUMBER OF ROWS
    Duplex
Description

The Roller Chain Duplex of type 100 of the brand IWIS known under the reference 100-2-ELITE-5M-IWIS. It has a pitch 31.75 mm and is to the iso606ansi norm.
