04B-2-ELITE-5M-IWIS
IWIS
04B-2-ELITE-5M-IWIS

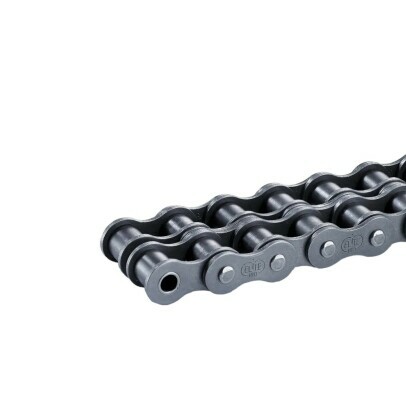

Roller chain duplex 04B-2-ELITE-5M-IWIS

Part number : 04B-2-ELITE-5M-IWIS

IWIS
Trustpilot

Trustpilot

Description

The Roller Chain Duplex of type 04B of the brand IWIS known under the reference 04B-2-ELITE-5M-IWIS. It has a pitch 6 mm and is to the iso606bs norm.

Your price: N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Roller Chain Duplex of type 04B of the brand IWIS known under the reference 04B-2-ELITE-5M-IWIS. It has a pitch 6 mm and is to the iso606bs norm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

TECHNICAL DATA
  • BRAND
    IWIS
  • N° EAN13
    3616060987983
  • MATERIAL
    STEEL
  • TYPE
    04B
  • WEIGHT
    1200  G
  • LUBRICATION
    elidurplus
  • SERIES
    G1
  • CHAIN STANDARDS
    iso606bs
  • ISO STANDARD BREAKING LOAD
    5  KN
  • WEIGHT PER METER
    0.24  KG
  • JOINT SURFACE
    0.16  CM2
  • PITCH
    6  MM
  • WIDTH BETWEEN INNER PLATES
    2.8  MM
  • ROLLER DIAMETER
    4  MM
  • AXIS DIAMETER
    1.85  MM
  • SHAFT LENGTH
    12.3  MM
  • OUTSIDE WIDTH INSIDE LINK
    4.15  MM
  • PLATE THICKNESS INSIDE OUTSIDE
    0.60
  • PLATE HEIGHT
    5  MM
  • TRANSVERSE PITCH
    5.5  MM
  • ADDITIONAL LENGTH
    2.5  MM
  • BREAKING LOAD ASA STANDARD
    5.8  KN
  • NUMBER OF ROWS
    Duplex
Description

The Roller Chain Duplex of type 04B of the brand IWIS known under the reference 04B-2-ELITE-5M-IWIS. It has a pitch 6 mm and is to the iso606bs norm.
