6313-2RS-C3-SKF
SKF

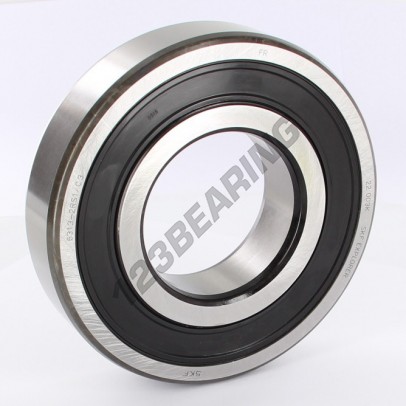

Deep groove ball bearing 6313-2RS-C3-SKF

65 65 140 140 33 33

Part number : 6313-2RS-C3-SKF

SKF
Trustpilot

Trustpilot

Description

The Deep Groove Ball Bearing, known as 6313-2RS-C3-SKF SKF, has an inner diameter of 65 mm, an outer diameter of 140 mm and a thickness of 33 mm.

Your price: 100,24 € INCL. VAT

  4 parts in stock

Quantity Price
10 - 24 95,96 € INCL. VAT
25 - 49 91,68 € INCL. VAT
50 - 99 87,40 € INCL. VAT
100 - inf 83,12 € INCL. VAT
For more information, please request a quote

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot

Description

The Deep Groove Ball Bearing, known as 6313-2RS-C3-SKF SKF, has an inner diameter of 65 mm, an outer diameter of 140 mm and a thickness of 33 mm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Trustpilot
CUSTOMERS ALSO BOUGHT
Rotary shaft seal - OAS-34X55X6-NBR GEN

ROTARY SHAFT SEAL OAS-34X55X6-NBR

34 34 55 55 6 6

5,65 € INCL. VAT


50+ parts in stock

E-clip - E-CLIP-2.3 GEN

E-CLIP E-CLIP-2.3

2.3 2.3

1,00 € INCL. VAT / piece


50+ parts in stock

Minimum order 2 pieces

Deep groove ball bearing - 6210-2RS-SKF SKF

Waterproof

DEEP GROOVE BALL BEARING 6210-2RS-SKF

50 50 90 90 20 20

24,69 € INCL. VAT


44 parts in stock

TECHNICAL DATA
  • BRAND
    SKF
  • N° EAN13
    7316576682155
  • INSIDE DIAMETER
    65  MM
  • SEALING
    Seal on both sides
  • CAGE
    Sheet metal
  • RADIAL CLASS
    C3
  • OUTSIDE DIAMETER
    140  MM
  • THICKNESS
    33  MM
  • LIMITING SPEED
    3200  RPM
  • WEIGHT
    2110  G
  • DYNAMIC LOAD
    97.5  KN
  • STATIC LOAD
    60  KN
  • PACKAGING
    1
Description

The Deep Groove Ball Bearing, known as 6313-2RS-C3-SKF SKF, has an inner diameter of 65 mm, an outer diameter of 140 mm and a thickness of 33 mm.
